Choosing the wrong evaporator costs you energy, product quality, and profit. If your cold room runs too warm, cycles too often, or ices up excessively, your air cooler is likely mismatched to your actual temperature requirement. This guide breaks down the DL, DD, and DJ series ceiling-mounted evaporators — so you can match the right unit to your specific application, eliminate selection errors, and optimize your refrigeration system's performance.
DL, DD & DJ Series Evaporators – Precision Cooling for Every Storage Zone
Industrial refrigeration demands exact temperature control. The DL, DD, and DJ series are engineered for three distinct thermal zones: high-temperature chilling, medium-temperature freezing, and low-temperature blast freezing. Understanding their differences is the key to solving operational inefficiencies and reducing total cost of ownership.
Core Advantages – Built for Reliability and Efficiency
Across all three series, these evaporators share a foundation of robust, high-performance engineering:
- Superior Heat Transfer – Steel tubes are mechanically expanded into corrugated aluminum fins, ensuring maximum surface contact and thermal conductivity for rapid pull-down and stable holding temperatures .
- Heavy-Duty Motors – Specially selected fan motors deliver high static pressure and consistent airflow (1,700 – 30,000 m³/h), performing reliably even in low-temperature environments .
- Fast Electric Defrost – Embedded stainless steel heating elements provide quick defrost cycles, minimizing temperature swings and reducing compressor load during recovery .
- Corrosion-Resistant Casing – High-grade steel with powder-coated finish offers excellent durability in humid, cold, and salty environments, extending service life .
Series Breakdown – Solve Your Selection Puzzle
The golden rule is simple: match the series to your storage temperature. Using the wrong series leads to coil icing, poor humidity control, and compressor short-cycling. Below is the definitive differentiation to resolve your selection confusion.
| Series | Temp Range | Typical kW Range | Air Volume (m³/h) | Best For | |

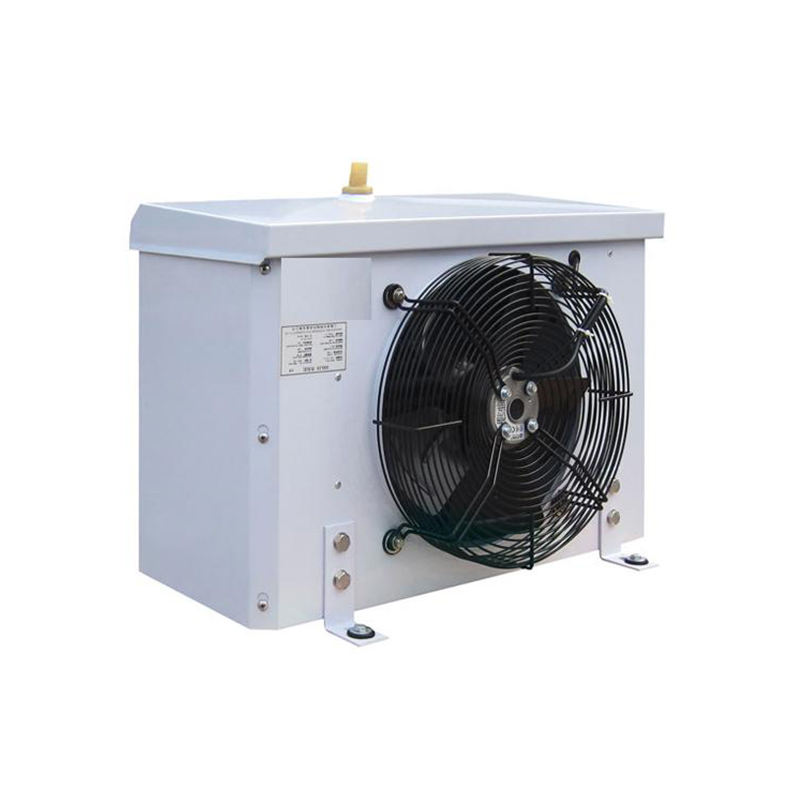

| DL | 0°C to +5°C | 1.5 – 45 | 2,000 – 28,000 | Fruit and vegetable cold rooms, dairy storage, beverage chilling, and floral preservation . | |

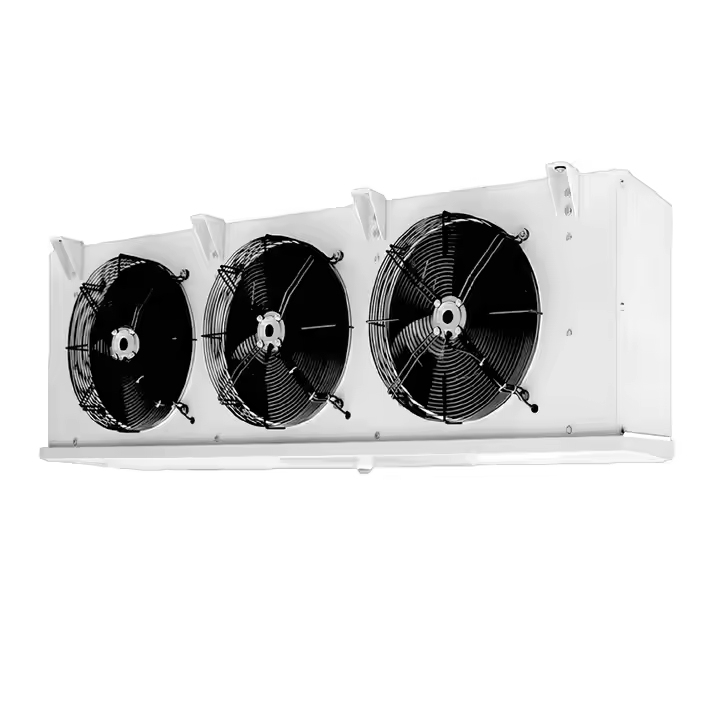

| DD | -18°C | 1.3 – 56 | 1,700 – 30,000 | Meat and poultry freezing, seafood storage, ice cream hardening rooms, and processed food warehouses . | |

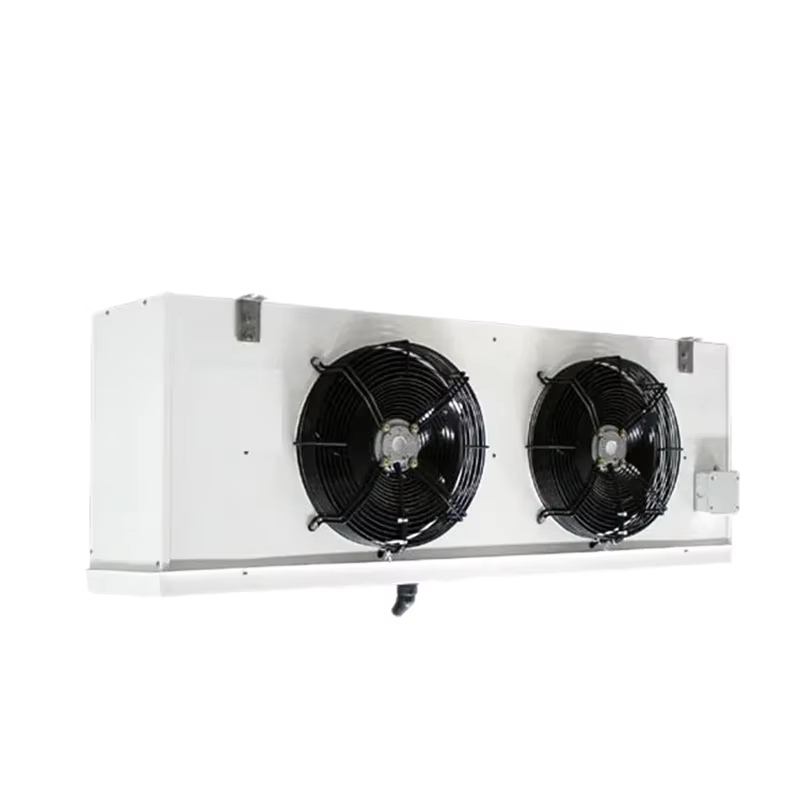

| DJ |
|
2.0 – 40 | 2,500 – 26,000 | Quick-freezing of fresh fish, shrimp, high-value meat cuts, and ice cream blast chillers . |
Conclusion – Simplify Your Choices, Maximize Your ROI
Following the temperature rules makes choosing the right evaporator simple: the DL series is for fresh refrigeration, the DD series for standard freezing, and the DJ series for quick-freezing. Each series is carefully designed to address specific operational challenges – from humidity control to extreme heat load management. Say goodbye to blind selection; match your application to enjoy lower energy consumption, longer compressor life, and better product preservation.
Need expert advice for your cold storage capacity? Contact our technical team with your cold storage dimensions and target temperature – we'll immediately help you select the most suitable DL, DD, or DJ series evaporator.
Need expert advice for your cold storage capacity? Contact our technical team with your cold storage dimensions and target temperature – we'll immediately help you select the most suitable DL, DD, or DJ series evaporator.
